Novazzano, Switzerland

Inpeco Headquarted

Led Italy took care of the lighting the headquarter of the Inpeco Group, a multinational company located in Switzerland that has been active for over 20 years in the design, development and production of automation systems for clinical analysis laboratories.

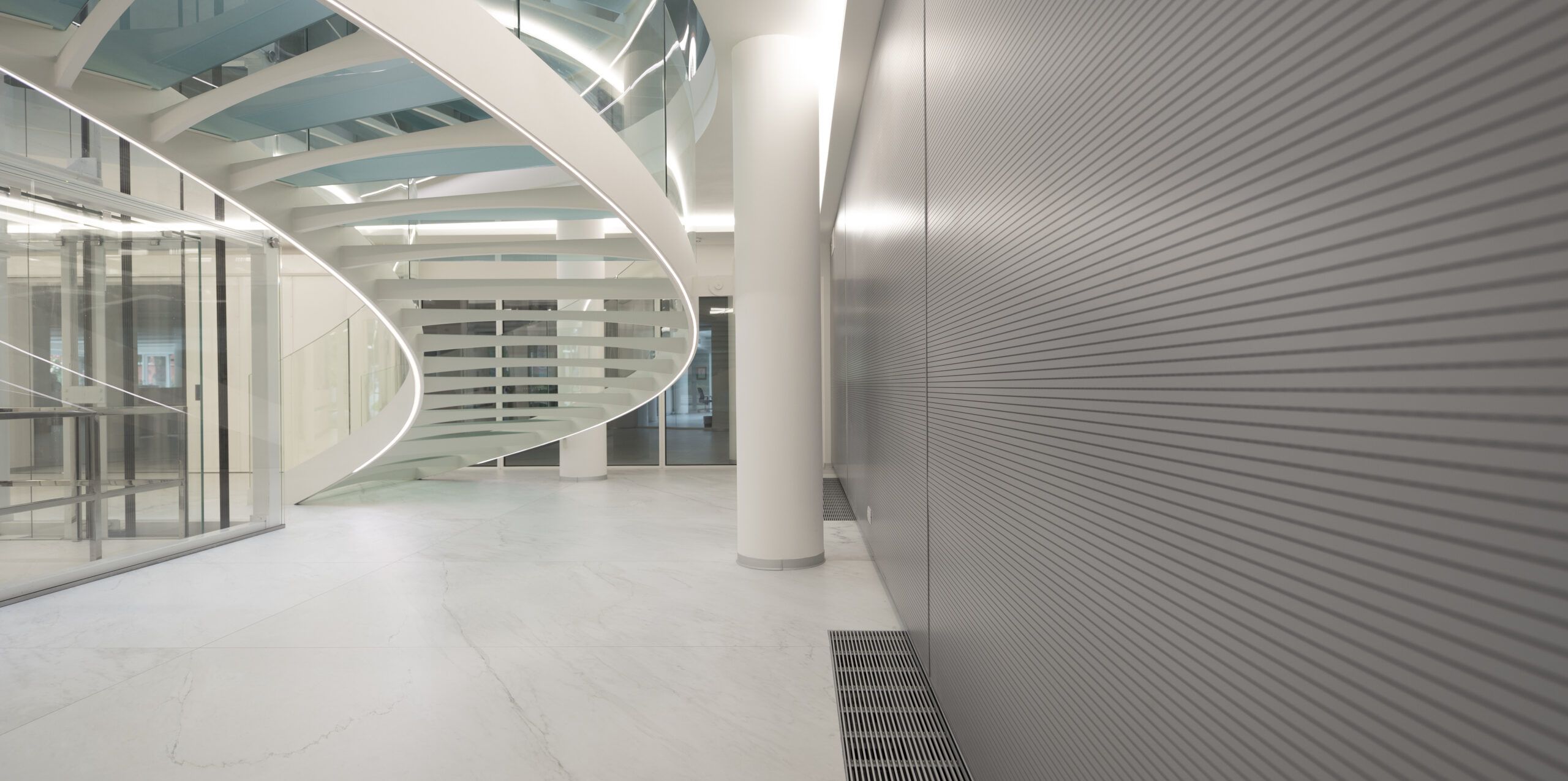

Thanks to the flexibility and high efficiency of the FLEX HIGH LINE LIGHT LINE, which adapts perfectly to the shape of the buildings, we have achieved a great effect for the lighting of the spiral staircase.

  • Project end date
    July, 2017
  • Products used

    Linea Luce Profile – Recessed line
    Linea Luce Profile – High Line
    Linea Luce Flex – High line
    Linea Luce Profile – Midi Line
  • Location
    Novazzano, Switzerland

Indoor

A modern and stylishly furnished building enhanced by Led Italy

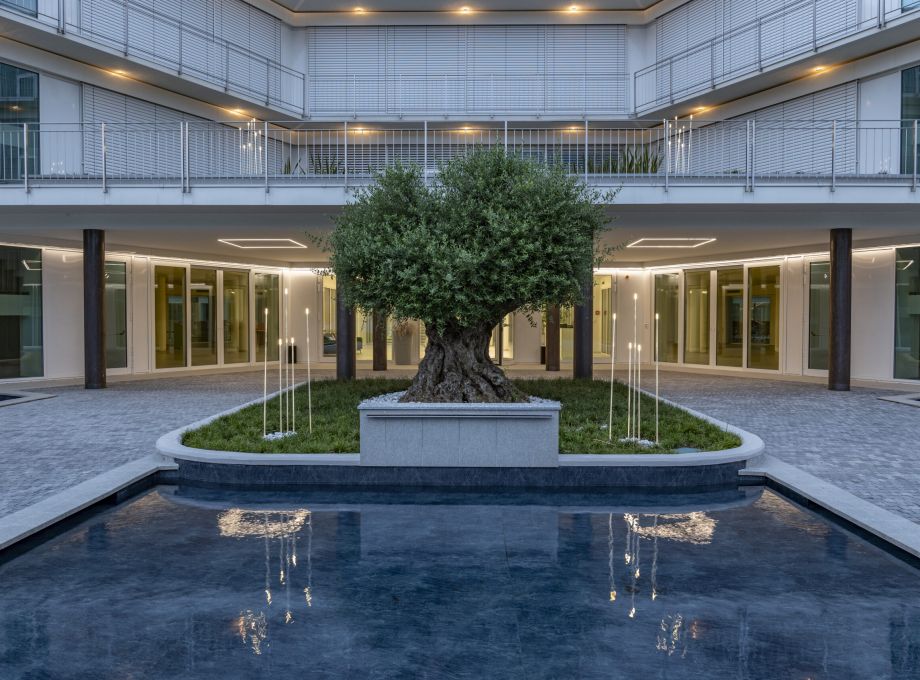

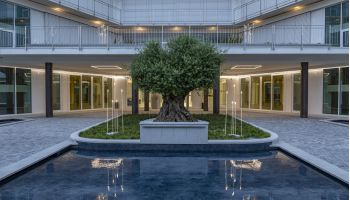

  • Entrance

    In the entrance there is an important linear Recessed LED with aluminium, silver or black profile custom made, length max. mm. 2505, section 48.6 x 32.5mm. Recessed section 33.6 mm.

    The LED profile is designed to be equipped with the most performing models of the Linea Luce collection LED strips. Available with transparent or frost PMMA cover.

    IP40 versions or IP60 versions with Conformal Coating. IP65 and IP67 versions with internal resin processing, frost or transparent cover. Installation accessories.

    12-24Vdc models, power cable included 1 meter length. Available accessories: narrow beam optical lens and blind front cover.

    Product reference

    Linea Luce Profile – Recessed line L605

    • Recessed line

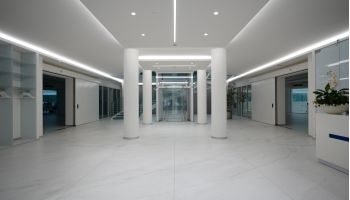

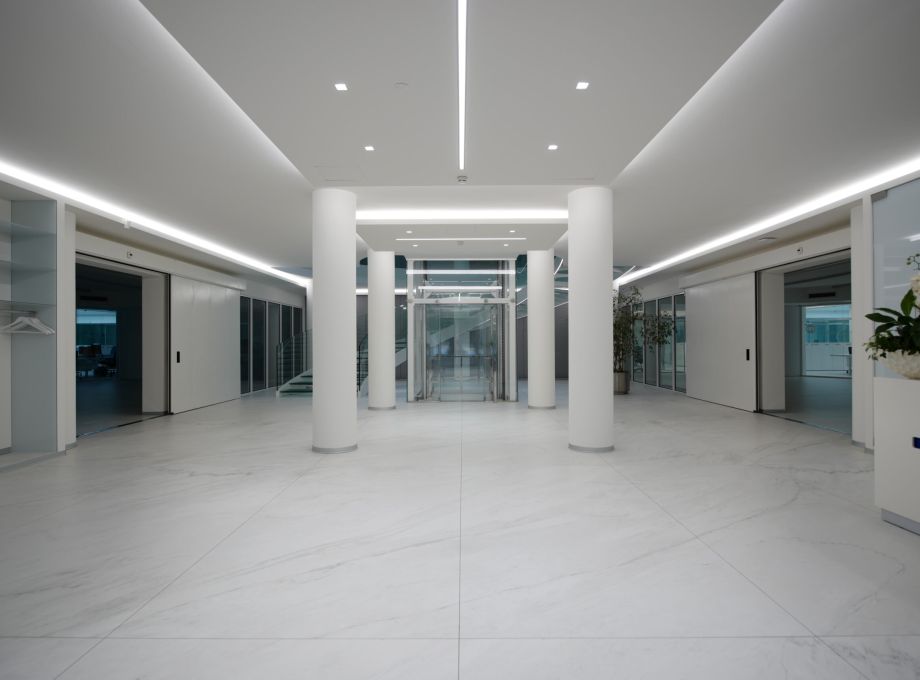

  • Lobby

    Ceiling-mounted – in sight LED profile made in extruded aluminium with double internal section, silver anodised. Custom length, max. mm. 2505.

    Designed to be equipped with the most performing models of the Linea Luce collection LED strips. Available with transparent or frost PMMA cover. Accessory like end caps, steel fixing clips included in the product.

    IP65 and IP67 versions with internal polyurethane resin and PVC cover. 12-24Vdc models, power cable included 1 meter length. Available accessories: narrow beam optical lens and blind front cover. Optional accessories: connection joints.

    Product reference

    Linea Luce Profile – High Line L304

    • Linea luce Profile

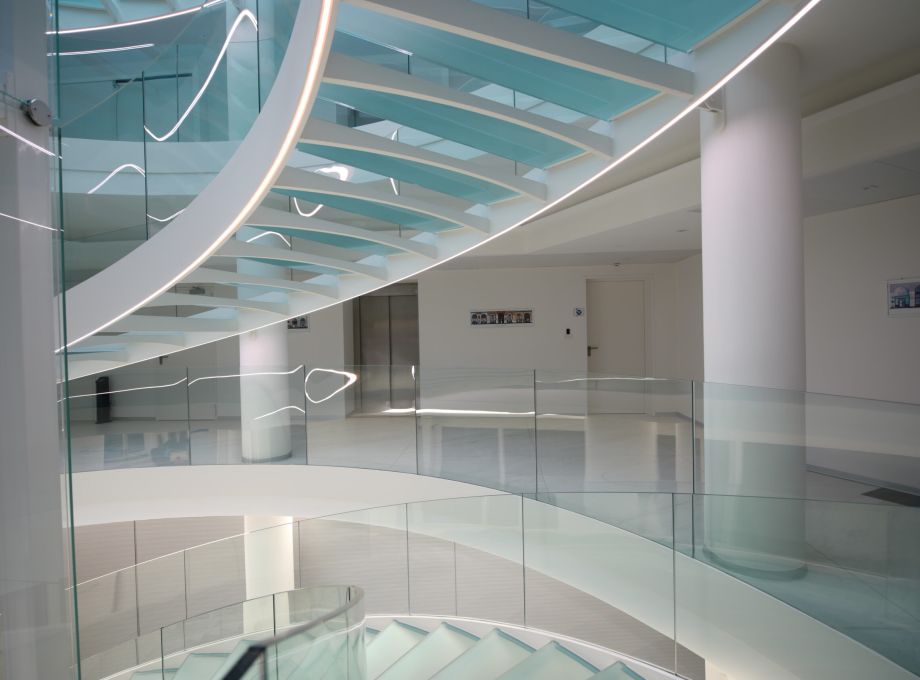

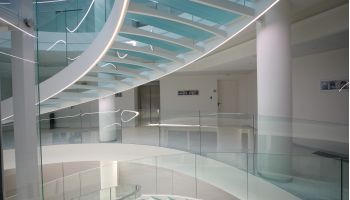

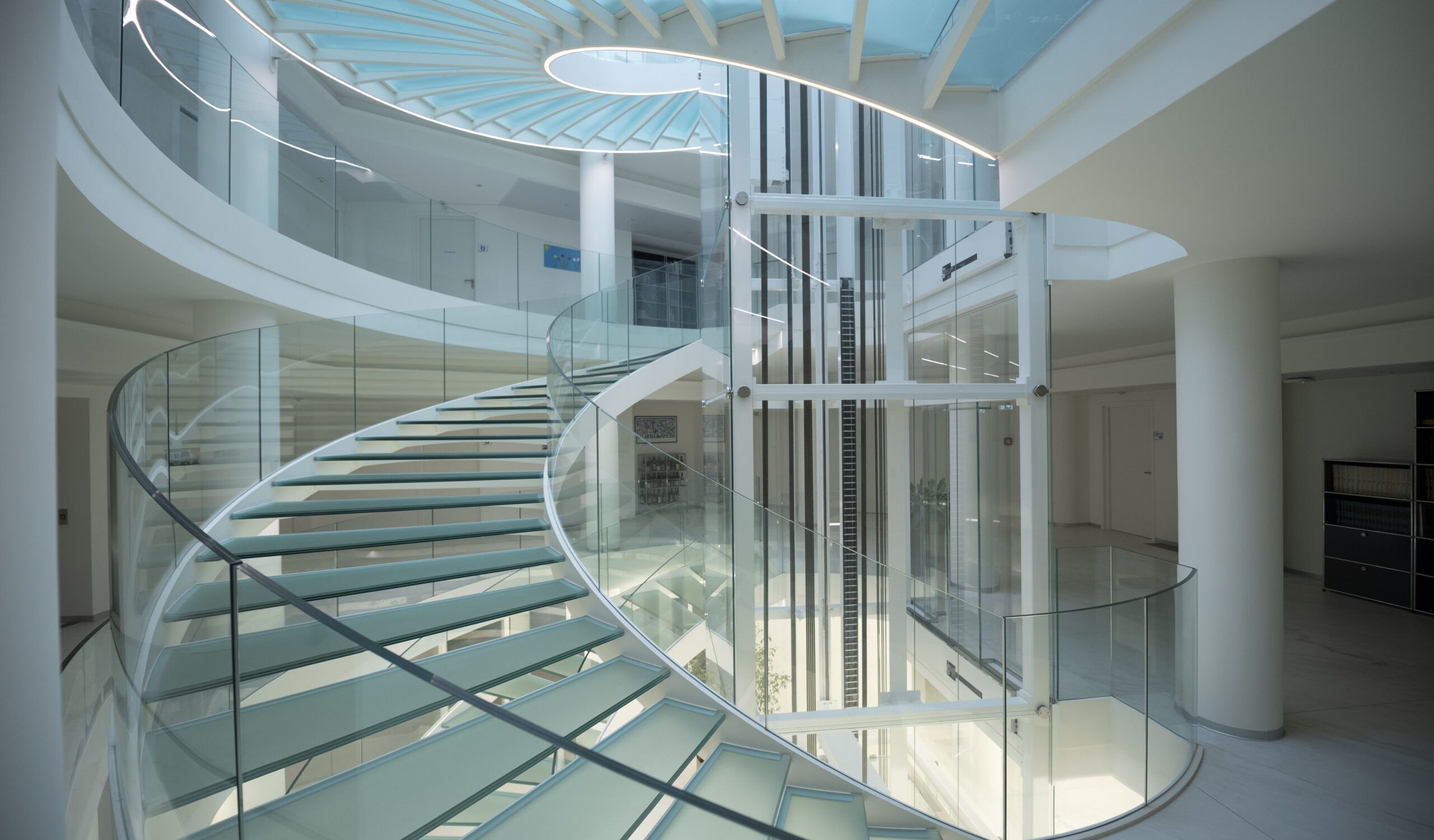

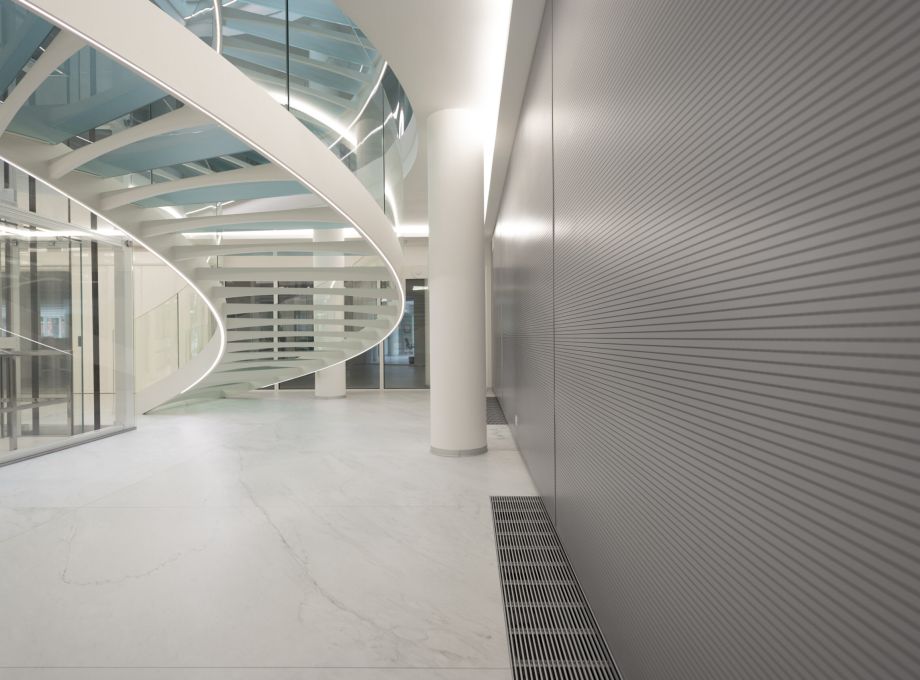

  • Stairs

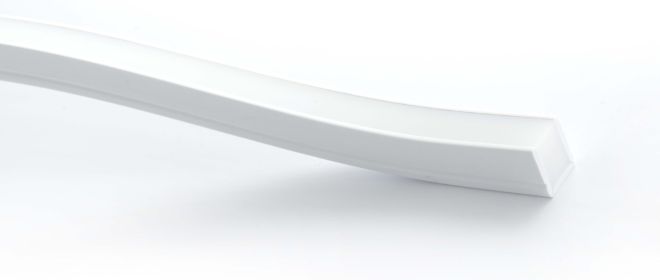

    Horizontal bending of the LED strip, total uniformity of light emission, no dot effect. These are the key points of the High Line Side Light collection by Led Italy, which founds a right correspondence to the concept of the accent lighting on horizontal surfaces of any shape.

    The concept of side bending light fixture, is the result of years of research and development and it consists of a PVC outer-case, optimized for supporting the LED strip and its PCB.

    The Led Strips of the High Line Side Light collection have frost resin that allow to a great uniformity of the light diffusion and, at the same time, a rate of protection suitable for outdoor installations with a maximum protection rate, IP68.

    The collection offers various different models in terms of lumen and chromaticity all of them equipped with LED Strips manufactures with high efficiency LED diodes.

    Various CCT l are available, including Very Warm White, Warm White, Natural White, single colour, Tunable White, Full RGB, RGBW and dynamic RGB, or DOT Addressable, the Digital Signage technology.

    Product reference

    Linea Luce Flex – High line – Side Light

    • High Line

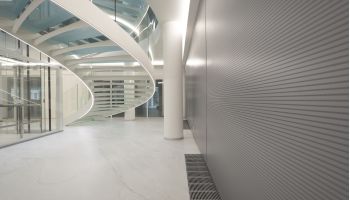

  • Corridors

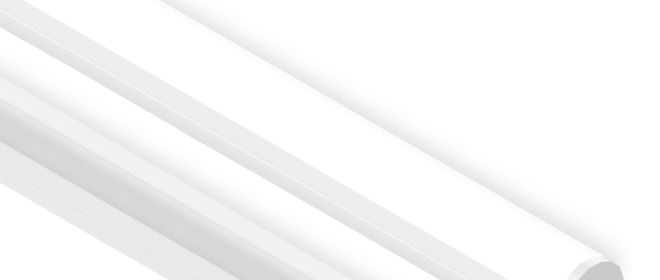

    Semi-oval section LED profile in silver anodized aluminium. In sight installation custom length , max. mm. 2505.

    Designed to be equipped with different models of the Linea Luce collection LED strips. Available with transparent or frost PMMA cover. Accessory like end caps, steel fixing clips included in the product.

    IP65 and IP67 versions with internal polyurethane resin and PVC cover. 12-24Vdc models, power cable included 1 meter length. Available accessories: narrow beam optical lens and blind front cover. Optional accessories: presence sensor.


    Reference Product
    Linea Luce Profile – Midi Line L204

    • Midi Line
